HC A CQD25-AC2S-I

NEW

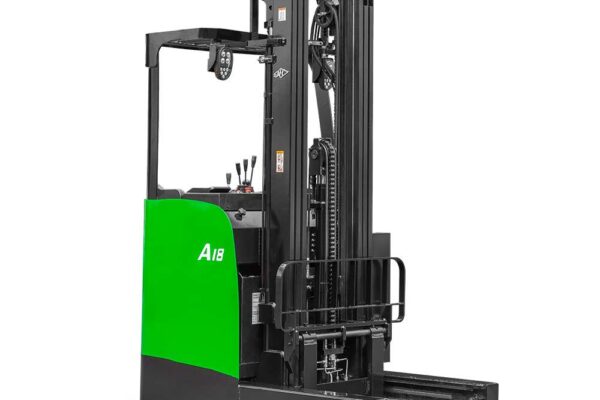

Pictures are illustrative.
  • Manufacturer: Hangcha
  • Model :   CQD25-AC2S-I
  • Availability: When ordering
  • Max. lifting force: 2500 kg
  • Max. lifting height: 3000 mm
  • Lifting type: Normal lift
  • Fork length: 1200 mm
  • Power source: Electricity
  • Specification 1

Hind alates 27,275 + VAT 24%

  • After-payment possibility

  • Rental/ trial option

  • Li-ION

  • Warranty 2 years

The A series stacker is the latest generation of HC stackers, which is equipped with a 48V Li-ion battery, which ensures thanks to to fast charging with even greater efficiency than before. In addition to fast charging, the new model has the advantage of almost non-existent maintenance costs. The stacker is primarily intended for work in narrow spaces. A narrower working corridor and a smaller turning radius allow more efficient use of the warehouse space.

Battery warranty: 5 years or 4000 charging cycles.

Standard equipment:

  • The first LED lights;
  • Indicator lights (LED);
  • AC motor (4kw);
  • AC lift (9kw);
  • EPS (Electric Power Steering) system
  • Mechanical service brake;
  • USB output;
  • Automatic deceleration during revolutions;
  • Smooth fork lowering;
  • Different operating modes;

Additional equipment:

  • Various hazard lights;
  • Different mast types;
  • Forks of different lengths;
  • Camera for forks;
  • Altimeter;
  • Password lock;
  • Mirrors;
  • Fire extinguisher;
  • More powerful battery (max 370Ah)

In addition to the above, we offer many more special solutions according to your needs.



Other dimensions and features

Transmission:
Electric motor
Transport scheme:
Two wheel drive
Battery data:
CATL Li-Ion 48V/202Ah
Battery charger:
SLC-80100
Wheel type:
Polyurethane
Hydraulic control:
With levers
Length:
1335 mm
Width:
1194 mm
Height:
2245 mm
Weight:
from 2725 kg
Length of forks:
1200 mm
Maximum speed:
10,5 km/h
Lifting speed:
0.530 m / s
Turning radius:
1750 mm
