CAM PN-T

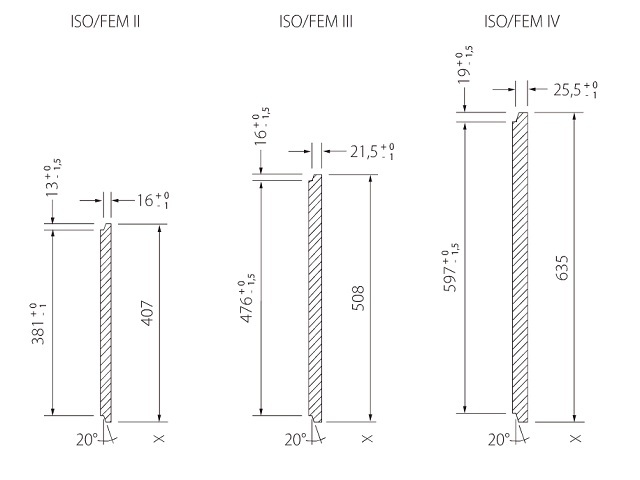

offer CAM Fork positioners made by (Italy) ISO/FEM 2 and 3 to the fork mounting standard.

Load capacity up to 3500kg

Widths 920 - 1250mm

Attaches the FEM standard fork mount to the sled

There are no forks in the kit - FEM standard forks are suitable

* fork folding and side shift function

(requires 2 separate hydraulic sections, i.e. 4 hoses to the fork carriage)

* maximum hydraulic pressure up to 180 bar

* minimum hydraulic oil productivity of 16 l/min



PN-T – standard model for regular use.

Load capacity up to 2500kg, FEM 2

PN25T.092 – width 920mm, weight 74kg

PN25T.098 – width 980mm, weight 77kg

PN25T.102 – width 1020mm, weight 79kg

PN25T.104 – width 1040mm, weight 80kg

PN25T.110 – width 1100mm, weight 84kg

PN25T.115 – width 1150mm, weight 86kg



Load capacity up to 3500kg, FEM 3

PN35T.110 – width 1100mm, weight 120kg

PN35T.115 – width 1150mm, weight 124kg

PN35T.125 – width 1250mm, weight 130kg



Possible cheaper model without lateral displacement function - only 1 separate hydraulic section is required, i.e. 2 hoses to the fork carriage.

If the model you need is not immediately in stock, shipping costs will be added to the express order.

Delivery time of the most common models approx. 1 week

Please ask our sales people for a quote so that we can correctly coordinate all the details!
